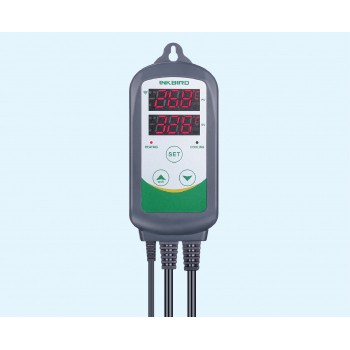

Inbird ITC-308 WiFI är en "plug and play" universaltermostat med EU-plugg för såväl värme som kyla. Slipp lödning, skarvar och kalibrering. Känslighet +/- 1 grad.
Observera att sladden till temperaturgivaren ej är livsmedelsklassad. Använd med ett dykrör vid t.ex. mäskning.
Specification:
- Plug and play design, easy to use.
- Support reading with Centigrade or Fahrenheit.
- Maximum output load: 1100W(110V)/ 2200W(220V)
- Temperature calibration, Compressor delay protection for refrigeration control.
- High and low temperature alarms are available.
- Dual relay output, be able to connect with refrigeration and heating equipment at the same time.
- Dual display window, be able to display measured temperature and set temperature at the same time.
- Heating/Cooling differential function could be set separately for refrigeration and heating to protect temperature controller from violent change.
- WIFI smart controller supports both IOS & Android，WIFI supports 2.4GHz Wi-Fi router, free APP “InkbirdSmart” which is able to monitor temperature at any time.
- [WIFI & APP] WIFI smart controller supports both IOS & Android，WIFI supports 2.4GHz Wi-Fi router, free APP “InkbirdSmart” which is able to monitor temperature at any time.
- Dual Relay Output] Dual relay output, which can connect heating and cooling device at the same time.
- [Alarm for Safe] High/Low temperature limit setting alarm.
- [Convenient Design] Plug-n-play, easy to use. Support ℃/℉ reading and Temperature calibration.
- [Long Warranty] The controller itself has 2 years warranty while the temperature sensor has 1 year warranty.
Technical details:
- Temperature Control Range : -50~99 °C / -58~210 ° F
- Temperature Resolution: 0.1 ° C / 0.1° F Temperature Accuracy: ±1°C (-50 ~ 70°C) / ±1°F (-50 ~ 160° F)
- Temperature Control Mode :On/Off Control, Heating and Cooling
- Input Power: 100 ~240VAC, 50Hz/60Hz
- Temperature Control Output: Max. 10A, 100V ~240V AC
- Buzzer Alarm: High and Low Temperature Alarm
- Sensor Type: NTC sensor (Including)
- Sensor Length: 2m / 6.56ft
- Relay Contact Capacity:Cooling (10A, 100-240VAC)
- Heating (10A, 100-240VAC)
- Input Power Cable Length: 1.5m (5ft)
- Output Power Cable Length: 30cm (1ft)
- Dimension Body: 140x68x33mm (5.5x2.7x1.3inch)
- Socket: 85x42x24mm(3.3x1.7x1inch)
- Ambient Temperature: -30~ 75 ° C / -22~ 167 ° F
- Storage Temperature: -20~ 60 ° C / -4~ 140 ° F
- Humidity 20~85% (No Condensate)
- Warranty: 1 Year
