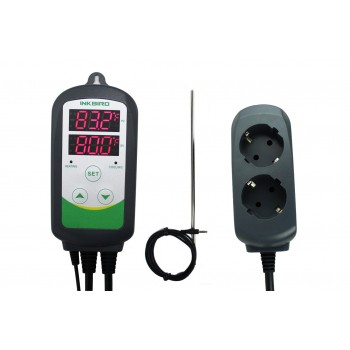

Universaltermostat Inkbird ITC-308

Universaltermostat Inkbird ITC-308

499,00 kr

Inbird ITC-308 är en "plug and play" universaltermostat med EU-plugg för såväl värme som kyla. Slipp lödning, skarvar och kalibrering. Känslighet +/- 1 grad.

Observera att sladden till temperaturgivaren ej är livsmedelsklassad. Använd med en s.k. thermowell vid mäskning.

Specification:

Plug and play design, easy to use;
Dual relay output, be able to connect with refrigeration and heating equipment at the same time;
Support reading with Centigrade or Fahrenheit unit;
Maximum output load: 1000W(110V)/2000W(220V);
Dual display window, be able to display measured temperature and set temperature at the same time;
Temperature calibration;
Compressor delay protection for refrigeration control
High and low temperature alarms are available;
Over-temperature and sensor fault alarm
Heating/Cooling differential function could be set separately for refrigeration and heating to protect temperature controller from violent change.

Technical details:

Temperature Control Range : -50~99 °C / -58~210 ° F
Temperature Resolution: 0.1 ° C / 0.1° F Temperature Accuracy: ±1°C (-50 ~ 70°C) / ±1°F (-50 ~ 160° F)
Temperature Control Mode :On/Off Control, Heating and Cooling
Input Power: 100 ~240VAC, 50Hz/60Hz
Temperature Control Output: Max. 10A, 100V ~240V AC
Buzzer Alarm: High and Low Temperature Alarm
Sensor Type: NTC sensor (Including)
Sensor Length: 2m / 6.56ft
Relay Contact Capacity:Cooling (10A, 100-240VAC)
Heating (10A, 100-240VAC)
Input Power Cable Length: 1.5m (5ft)
Output Power Cable Length: 30cm (1ft)
Dimension Body: 140x68x33mm (5.5x2.7x1.3inch)
Socket: 85x42x24mm(3.3x1.7x1inch)
Ambient Temperature: -30~ 75 ° C / -22~ 167 ° F
Storage Temperature: -20~ 60 ° C / -4~ 140 ° F
Humidity 20~85% (No Condensate)
Warranty: 1 Year
