The Grainfather är ett RIMS-bryggverk tillverkad i rostfritt stål som rymmer 60 liter.
Mäskning, silning och kok sker i samma kärl.
Insatser för malt är perforerad och kan placeras ovanpå bryggverket efter mäskning för avrinning. Till skillnad från flera liknande system har Grainfather en motströmskylarevilket gör att vörtkylaren inte behöver sänkas ner i bryggverket och man slipper på det viset onödigt blask. Motströmskylaren monteras direkt på vattenblandaren hemma och vörten som pumpas genom motströmskylaren går sedan vidare direkt till jäshinken.
YOUR BREWING EXPERIENCE FRESHLY SERVED ON YOUR PHONE
Download the Grainfather App and take your brewing tools, calculators and recipes wherever you go.
• Brew 1000’s of community recipes• Create your own signature brews with the advanced recipe creator
• Make quick and accurate advanced brewing calculations without leaving the app
• Connect fermentation tracking devices like Tilt, Plaato and iSpindel to easily track and record your brew data in one place
• Monitor your brew session remotely with alerts and notifications
• Available to download from the Apple App Store or Google Play Store
With the G70 you can use your mobile device as a remote control to monitor your brew wirelessly. Automate mash schedules and multitask without losing any of the hands

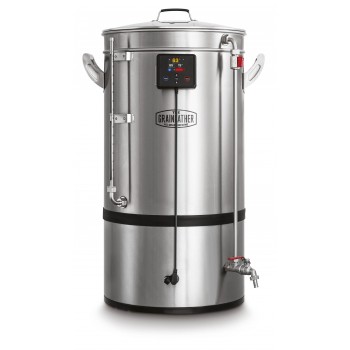

The Grainfather G70 represents the next level in homebrewing equipment and its the perfect half barrel smart brewing system for experienced homebrewers on the verge of their dreams, for authentic pilot batches in commercial breweries, or for those who simply want to brew more delicious beer.
The G70 has the same signature Grainfather quality in a larger capacity with app integration and smart brewing technology. It has everything in one compact package that can be used virtually anywhere and it's compatible with the Grainfather Conical Fermenter and Glycol Chiller for the ultimate advanced brewery set up.
Large brewing capacity. 60L (16 US Gal) into fermenter with up to 7.5% ABV finished beer.
Get the expected gravity from your grains. A conical base for maximum brewhouse efficiency.
Produce better, repeatable beer through accurate temperature control. PID heating control for high accuracy mashing.
Fast and easy cleaning. Clean in place capability minimises the need to remove and individually clean parts
Easy and sanitary brew transfer. Large, high efficiency Counterflow Wort Chiller included.
Monitor your brew on your mobile device. Smart controller with built-in wireless connectivity and mobile app integration for step-by-step remote controlled brewing.
Complete unit including Counterflow Wort Chiller, dust cover, quick connect re-circulation hose and lifting bracket.
PACKED WITH FEATURES
Two stage false bottom. The conical base allows a false bottom with an inner collar to sit in the recess of the base. Early testers used 600g of hops and saw full flow through the pump. This is very effective.
Convenient side entry recirculation. Rather than up and over, the G70 has a built in port on the side of the unit. If the pump is accidentally switched on, the wort will be safely directed back into the boiler.
Ball valve for sampling/draining. This runs in line with the pump so it’s particularly helpful when draining the cleaning water. The water runs out quickly, emptying the unit in no time.
Bespoke 3.2 kWh concealed conical heating element. Make the most of the power available. The element covers around 80% of the base and is mounted using a thermal paste rather than braised. This moves the heat efficiently upwards, minimising the loss of heat to areas where it’s not needed. As it’s spread in a wide area, hot spots and scorching are very unlikely. Also, most solids settle on the false bottom, so they won’t touch the elements. As it’s concealed, it makes cleaning easy too.
New rolled edge, mash plates and hop filter For increased strength and easy set up. There’s no more silicone seals, as the plates now have a smooth finish, making them more robust, hard-wearing and easy to install. Compared to the G30, the G70 is wider but not that much taller. Comparatively, the draining is still quick from the basket and there’s less likelihood of stuck sparges as the draining surface area is bigger.
Huge Wort Chiller included. Despite the volume being more than double, cooling times remain around the same as the G30 thanks to a more powerful pump, efficient false bottom and bigger wort chiller to match the wider unit. The large size means it needs to be positioned away from the G70, however this is made easy with longer silicone tubing attached as standard.
Integrated sight glass For easy volume readings during sparging. Instead of trying to judge the level of your preboil, you can easily sparge until you reach preboil volume. It’s also easy to clean after every brew. The sight glass cap can be replaced with the sight glass cleaning barb to easily recirculate a cleaning solution.
Safety aspects. Including locked in support ring, heavy duty, no slip brackets on the grain basket and protection from knocking the ball valve open.
Lifting bar included with winch lifting hook. Use the bar for a two person lift or with a stable winch system for individual brewers to lift the grain basket.
Bottom drain below the false bottom. Means minimal dead space.
Automatic heat sensors and safety cut-out. For dry boil protection.
Large dual-stage hop filter. Provides a large surface area to allow for a hopping rate of up to 1.5kg, which also reduces pump load and blockages.
High temperature, high flow rate, food-grade pump. With an 8L per minute flow rate, you can transfer your brew efficiently and safely.
Colour LCD controller screen with magnetic mounting. For easy viewing from all angles and manual control.
Robust stainless steel body. Excellent build quality.
Heavy duty handles. On the outside of the G70 unit.
Glass lid with handle.
Comes with a 3-year warranty.
